HKS Oil Cooler Kit - Suzuki Swift Sport ZC33S

This oil cooler kit features an optimal core size and layout, and
is designed specifically for the K14C turbocharged hot hatch Swift Sport.

■ Development concept

The K14C turbo engine, which produces 140 horsepower despite its small 1.4L displacement, comes standard with a water-cooled oil cooler to ensure stable engine power during street use.
However, when engaged in sporty driving on winding roads or a circuit, the stock water-cooled oil cooler alone is unable to provide sufficient heat exchange, with the temperature rising to around 120°C after just five minutes of driving, and reaching 130°C afterwards.
Therefore, by adding a special air-cooled oil cooler with an air guide, the engine oil temperature can be kept at an optimum temperature through effective heat exchange, allowing you to enjoy a sporty drive with peace of mind even during long periods of sporty driving.

■Product Features

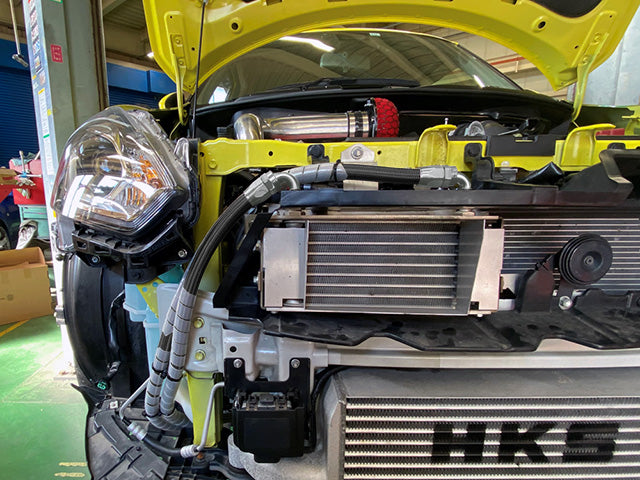

• Due to space limitations inside the front bumper, the core is mounted in the space in front of the radiator, so a small, thin 32mm 9-stage oil cooler core is used to minimize spoilage of the radiator's original cooling capacity.
• The air guide is specially designed to maximize the heat exchange capacity of the oil cooler core.
• High pressure compatible black mesh hose
• Built-in thermostat to prevent overcooling when cold
• There is one PT1/8 sensor mounting hole in the filter mount.
• Designed to minimize vehicle modification for installation (only requires cutting part of plastic radiator guide)

■Other/Notes

• The core is 32mm wide and 9 layers long.
• There is one PT1/8 sensor mounting hole in the filter mount.

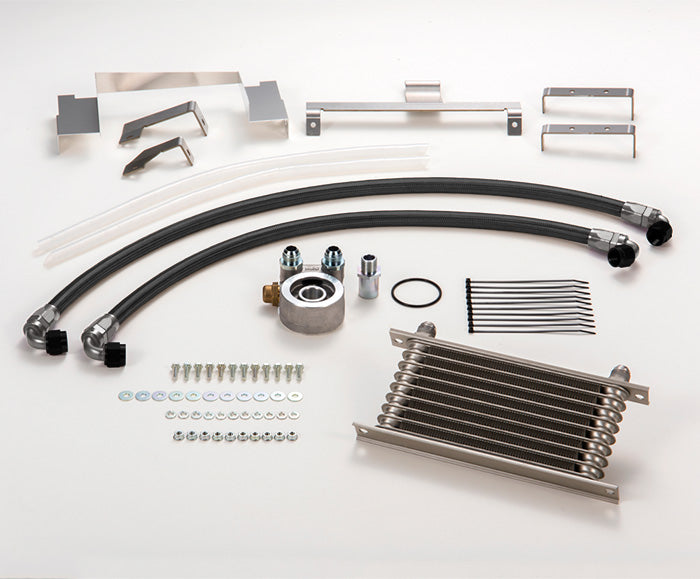

■Main kit parts

・Oil cooler core ・Air guide ・Oil filter mount ・Black mesh hose ・Mounting bracket ・Other short parts etc.
